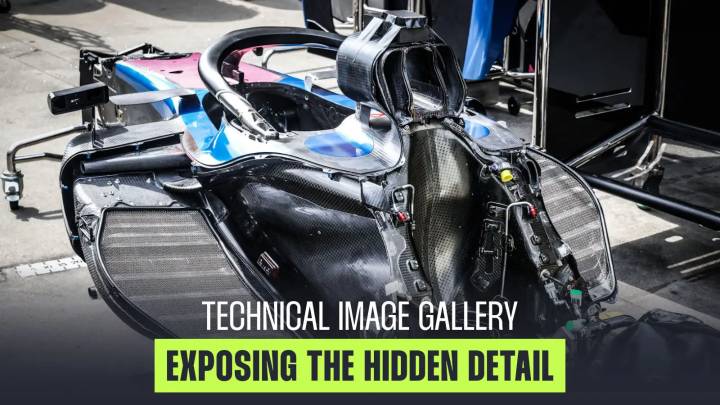

Formula 1’s development race moves at a frenetic pace, which often means some of the best technical images are missed in the melee of a race weekend.

So, with a few weeks’ break until the next race, let’s delve into some of the best images of the season so far. And be warned, the intricate detail these images reveals could make them not safe for work!

Detail orientated

From front wings to sidepod inlets, all the way to brake ducts and everything in between, there’s not a surface on an F1 car that isn’t specifically tailored to a team’s design desires, all of which offer an incredibly interesting vista.

While much of the work we can see, it’s the nuance and the details hidden below the surface that paint the clearest picture of why one team performs better than another.

A rare glimpse
