Another look at some of the more intricate design details on show in the first half of the season, as we comb through some of the best technical images available.

From front wings, to diffusers and everything in between, Formula One teams are always looking for an edge over their competitors, which results in some very interesting design choices for us to observe.

No detail too small

Top down overview of the front suspension and steering arm fairings on the McLaren MCL39 shows the various geometries employed for aerodynamic purposes.

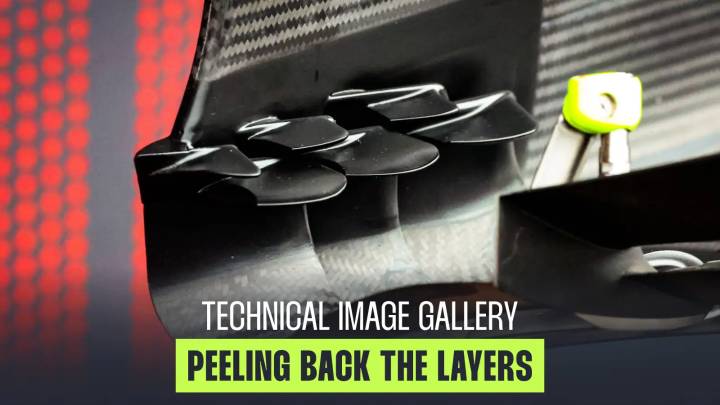

The forward, upswept section of the edge wing on the Aston Martin AMR25, which features a number of vanes to help control the airflow’s displacement as it exits from under the floor.

The edge wing on the Ferrari SF-25, which features an L-Shaped rear sect
